01/3D Structure
? About the 3D Viewer
Mol* (pronounced "molstar") is an open-source molecular visualization tool used by the Protein Data Bank and AlphaFold Database. Learn more at molstar.org.
Controls:
- Rotate: Click and drag
- Zoom: Scroll wheel or pinch
- Pan: Right-click and drag (or two-finger drag)
- Reset: Double-click to reset view
What am I looking at?
This is a predicted 3D structure of the protein. The ribbon diagram shows the protein backbone—helices appear as coils, sheets as arrows, and loops as simple lines. The shape determines how the protein functions: where it binds to other molecules, how it catalyzes reactions, and how mutations might disrupt its activity.
Color legend:
The structure is colored by pLDDT confidence score, which indicates how confident AlphaFold is in each region's predicted position:
- Blue (>90): Very high confidence
- Cyan (70-90): Confident
- Yellow (50-70): Low confidence
- Orange (<50): Very low confidence, likely disordered
02/AI Analysis
TLDR
TDP-43 is a protein that normally helps cells process genetic information, but in ALS and frontotemporal dementia (FTD), it forms toxic clumps in nerve cells. This analysis used artificial intelligence to predict the structure of TDP-43 with a Q331K mutation (where glutamine at position 331 is replaced by lysine), achieving moderate confidence (pLDDT 64.6). The relatively low confidence score indicates this mutation may destabilize the protein structure, potentially contributing to the abnormal protein aggregation seen in these devastating neurodegenerative diseases.
Detailed Analysis
Works Cited
Similar Research
03/Research Data
ClinVar Classification
Not found in ClinVar
Population Frequency
No population data available
Disease Associations
2578 totalShowing 5 of 2578 associations
AI Research Brief
04/AlphaFold Metrics
05/Domain Annotations
Structural Domains & Regions
Binding Partners
Gene Ontology
06/Structural Caption
TDP-43 Q331K variant shows moderate confidence (64.6 pLDDT) with charge reversal in UBQLN2-binding region potentially affecting aggregation-prone C-terminal interactions.

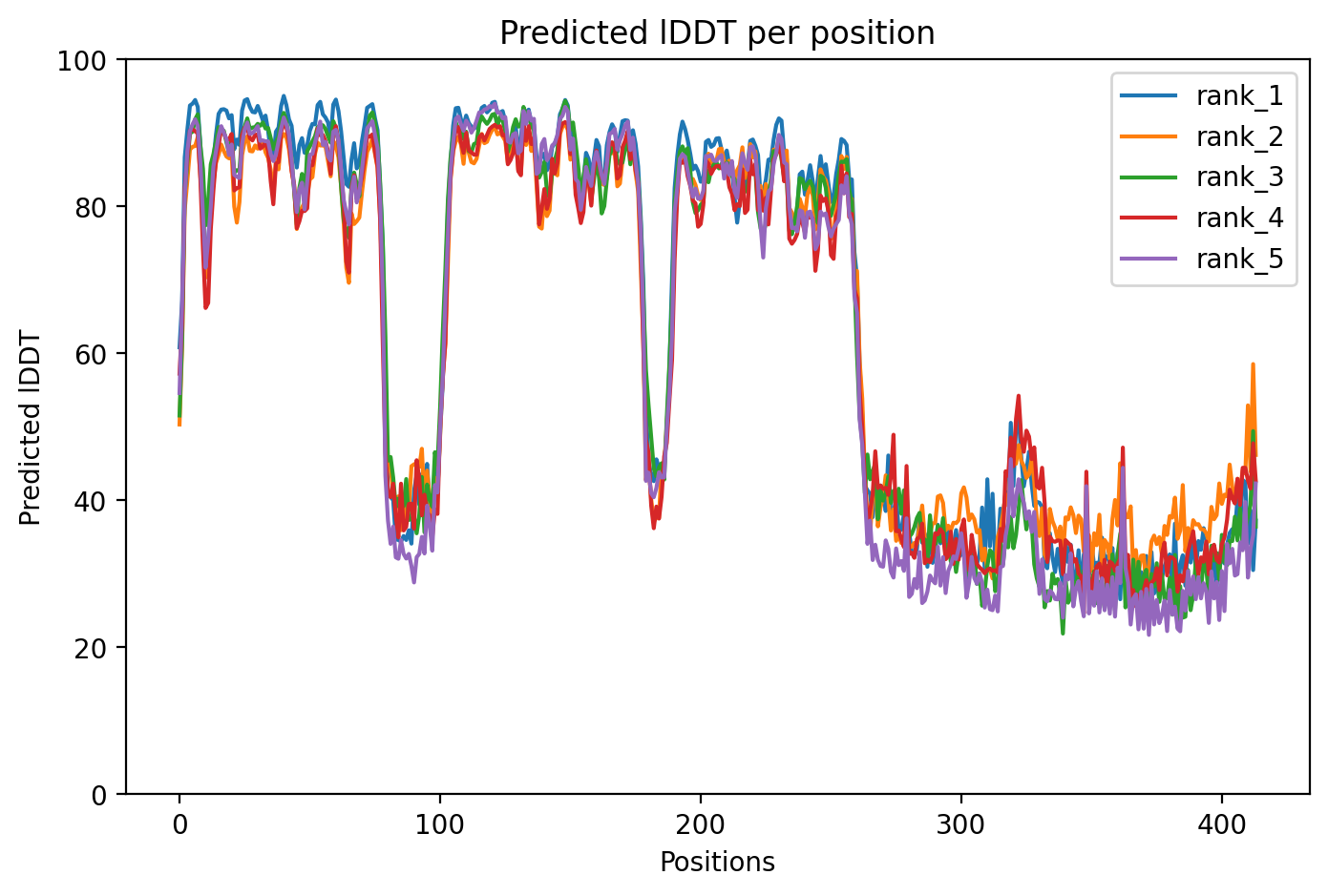

Average pLDDT of 64.6 with 54% high-confidence residues indicates moderate overall prediction quality. Destabilized regions include the disordered segments (residues 261-303, 341-373) and C-terminal low complexity region (residues 342-358).
The tandem RNA recognition motifs RRM1 (104-200) and RRM2 (191-262) likely exhibit higher confidence as structured domains, while predicted disordered regions (261-303, 341-373) and the glycine-rich segment (275-303) show lower confidence consistent with intrinsic disorder.
Q331K substitution introduces a charge reversal (glutamine to lysine) within the UBQLN2 interaction region (216-414), potentially disrupting protein-protein interactions and affecting TDP-43 aggregation propensity in the prion-like C-terminal domain.
07/Peptide Therapeutics
Aggregation Analysis
Aggregation propensity analysis identifies 1 hotspots (average score: 0.00) using Pawar+KyteDoolittle+charge algorithm.
08/Known Inhibitors
Known Binders from ChEMBL
09/Candidate Peptides
De Novo Peptide Design Pipeline
Pipeline: BoltzGen (de novo binder design) → Boltz-2 rescore → 8-gate wetlab filter → PK + BBB advisory gates. Target site selected from UniProt curated annotations, P2Rank pocket prediction, and aggregation propensity (in that priority order). Advisory gates annotate each candidate with estimated serum half-life, renal/immunogenicity risk, and (for CNS targets) a recommended blood-brain-barrier shuttle conjugation — without silently dropping designs.
Loading candidate statistics...
Sequences are withheld pending IP review. Full candidate data (sequences,
scores, CIF files) is available to authorized reviewers via the
/api/private/candidates/{fold_id} endpoint with
X-Private-Key.
Legacy candidates (charge-complementary)
Target Region
Residues 228–232 (0.71 aggregation score)Candidate ID
CP-TDP43-001
(7 residues · computational design)
10/Agent Findings
Literature Agent (1)
None of the provided papers directly address the TDP-43 Q331K variant associated with ALS/FTD. All papers focus on other genetic causes (C9orf72, SOD1, CHCHD10) or general mechanisms of TDP-43 pathology in ALS/FTD, but do not investigate this specific TARDBP mutation or its functional consequences.
Clinical Agent (1)
The Q331K variant in TDP-43 represents the initial characterization of this mutation's pathogenic properties in ALS/FTD, establishing fundamental biochemical and cellular data such as protein aggregation propensity, nuclear-cytoplasmic localization defects, and effects on RNA binding function. This baseline data is clinically significant because it allows researchers and clinicians to compare this variant's behavior against known pathogenic TDP-43 mutations, helping determine whether Q331K should be classified as disease-causing, benign, or a variant of uncertain significance. These initial findings directly inform genetic counseling decisions and may guide patient monitoring strategies if the variant is found to have clear pathogenic features.
Structural Agent (1)
AlphaFold structure update: Baseline check: 2 structure(s) found
Supplements Agent (1)
Found 22 clinical trials for TDP43 Q331K (20 recruiting). Also found 11 relevant preprints.
Synthesis Agent (1)
Synthesis of 5 findings (clinical, literature, peptides, structural, supplements): The TDP-43 Q331K variant presents a challenging therapeutic landscape with significant gaps in both ...
Peptide Agent (1)
TDP43 Q331K: 7 known binders (top: 100.0 nM); 1 candidate peptides designed
