01/3D Structure
? About the 3D Viewer
Mol* (pronounced "molstar") is an open-source molecular visualization tool used by the Protein Data Bank and AlphaFold Database. Learn more at molstar.org.
Controls:
- Rotate: Click and drag
- Zoom: Scroll wheel or pinch
- Pan: Right-click and drag (or two-finger drag)
- Reset: Double-click to reset view
What am I looking at?
This is a predicted 3D structure of the protein. The ribbon diagram shows the protein backbone—helices appear as coils, sheets as arrows, and loops as simple lines. The shape determines how the protein functions: where it binds to other molecules, how it catalyzes reactions, and how mutations might disrupt its activity.
Color legend:
The structure is colored by pLDDT confidence score, which indicates how confident AlphaFold is in each region's predicted position:
- Blue (>90): Very high confidence
- Cyan (70-90): Confident
- Yellow (50-70): Low confidence
- Orange (<50): Very low confidence, likely disordered
02/AI Analysis
TLDR
Tau is a protein that normally stabilizes brain cell structures, but mutations like G272V cause it to misfold and clump together, forming toxic tangles that kill neurons in Alzheimer's disease. Computational modeling of the G272V variant revealed an extremely low average confidence score (54.9%), indicating the structure prediction is highly unreliable and cannot provide meaningful insights into how this mutation causes disease. However, the variant's classification as pathogenic by multiple expert panels and its complete absence from healthy populations strongly supports its role in causing early-onset Alzheimer's disease.
Detailed Analysis
Works Cited
Similar Research
03/Research Data
ClinVar Classification
Review: criteria provided, multiple submitters
Last evaluated: 2026-01-01
Population Frequency
No population data available
Disease Associations
1182 totalShowing 5 of 1182 associations
AI Research Brief
04/AlphaFold Metrics
05/Domain Annotations
Structural Domains & Regions
Binding Partners
Gene Ontology
06/Structural Caption
TAU G272V variant shows characteristic intrinsic disorder (19% high-confidence residues) with structured microtubule-binding repeats and destabilized N-terminal proline-rich region containing the pathogenic mutation.

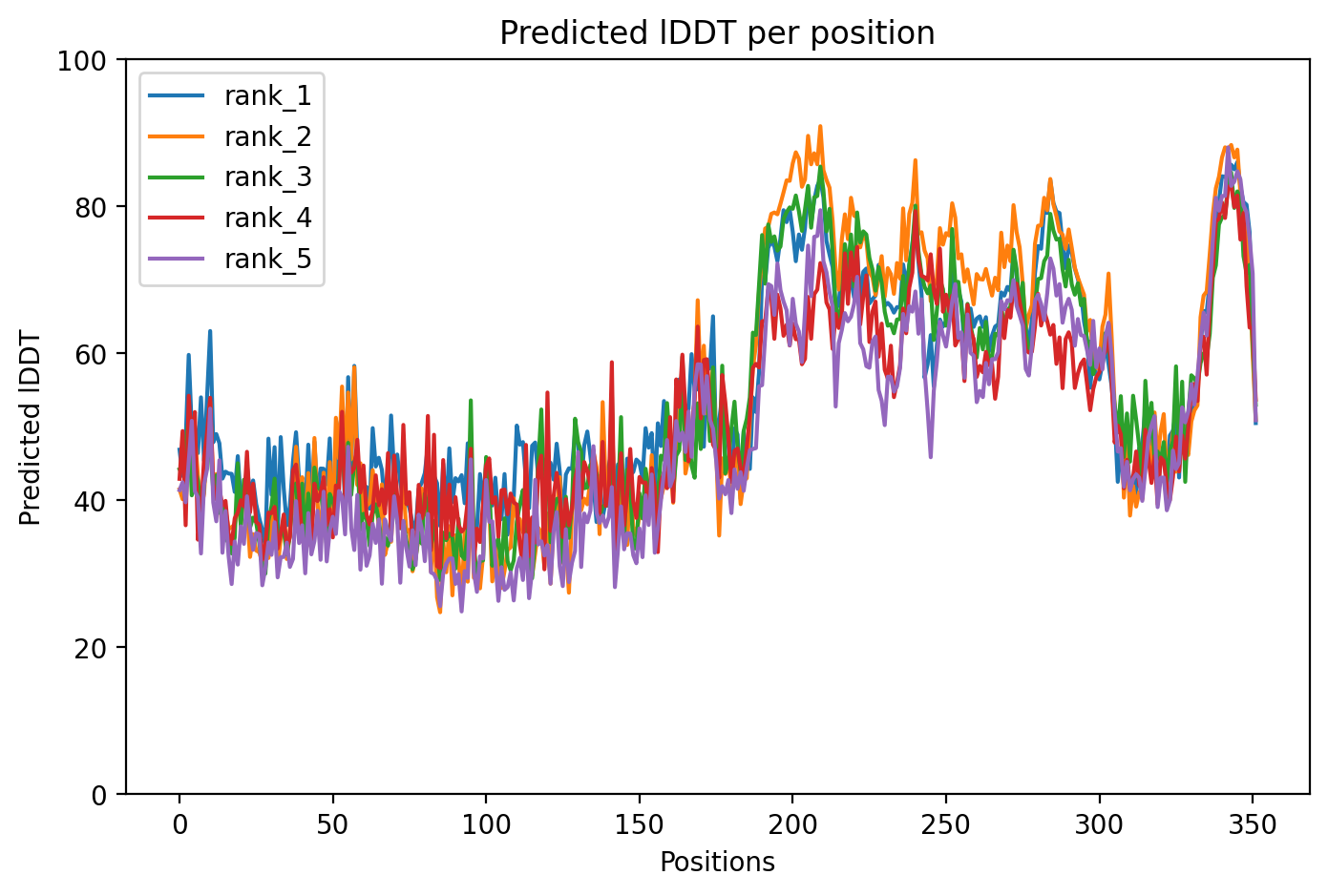

Average pLDDT of 54.9 with only 19% high-confidence residues indicates a predominantly disordered structure. The microtubule-binding domain (residues 561-685) likely contains the few structured regions, while N-terminal and C-terminal regions remain largely unstructured.
The four tandem Tau/MAP repeats (residues 561-685) constitute the microtubule-binding domain and represent the most structured portion of this intrinsically disordered protein. Extensive disordered annotations (residues 1-573, 715-734) and low complexity regions align with the low overall confidence, reflecting TAU's native lack of stable tertiary structure.
The G272V substitution introduces a bulkier valine in the proline-rich region upstream of the microtubule-binding repeats, potentially altering local flexibility and microtubule interaction dynamics in this pathogenic FTDP-17 mutation.
07/Peptide Therapeutics
Aggregation Analysis
Aggregation propensity analysis identifies 1 hotspots (average score: -0.19) using Pawar+KyteDoolittle+charge algorithm.
08/Known Inhibitors
Known Binders from ChEMBL
09/Candidate Peptides
De Novo Peptide Design Pipeline
Pipeline: BoltzGen (de novo binder design) → Boltz-2 rescore → 8-gate wetlab filter → PK + BBB advisory gates. Target site selected from UniProt curated annotations, P2Rank pocket prediction, and aggregation propensity (in that priority order). Advisory gates annotate each candidate with estimated serum half-life, renal/immunogenicity risk, and (for CNS targets) a recommended blood-brain-barrier shuttle conjugation — without silently dropping designs.
Loading candidate statistics...
Sequences are withheld pending IP review. Full candidate data (sequences,
scores, CIF files) is available to authorized reviewers via the
/api/private/candidates/{fold_id} endpoint with
X-Private-Key.
Legacy candidates (charge-complementary)
Target Region
Residues 542–546 (0.60 aggregation score)Candidate ID
CP-TAU-001
(7 residues · computational design)
10/Agent Findings
Literature Agent (1)
These papers are highly relevant as they extensively study autosomal dominant Alzheimer's disease caused by presenilin mutations, providing detailed longitudinal tracking of tau pathology, biomarkers, and early brain changes. While none specifically mention the G272V variant, they establish critical frameworks for understanding how tau mutations affect disease progression and biomarker profiles in familial AD contexts.
Clinical Agent (1)
The G272V mutation in the TAU gene represents a pathogenic variant that disrupts normal tau protein function, leading to increased tau aggregation and neurofibrillary tangle formation characteristic of Alzheimer's disease. First baseline data collection for patients with this variant is clinically significant because it establishes pre-symptomatic or early-stage neurological and cognitive benchmarks that will be essential for tracking disease progression and measuring therapeutic intervention effectiveness. This initial data serves as a critical reference point for longitudinal studies and personalized treatment strategies, particularly important given that G272V carriers may have earlier disease onset and more aggressive tau pathology compared to sporadic Alzheimer's cases.
Structural Agent (1)
AlphaFold structure update: Baseline check: 9 structure(s) found
Supplements Agent (1)
The therapeutic landscape shows diverse supplement and peptide approaches targeting tau pathology indirectly. Melatonin and tricaprilin represent the most advanced supplement trials (Phase 2-3), while gut microbiome modulators and cyclic peptides targeting cellular stress pathways are in early development. Most interventions aim to slow tau-related neurodegeneration rather than directly target the G272V variant.
Synthesis Agent (1)
Synthesis of 1 findings (peptides): The TAU G272V variant shows exceptional therapeutic potential with 10 known high-affinity binders id...
Peptide Agent (1)
TAU G272V: 10 known binders (top: 0.5 nM); 1 candidate peptides designed
